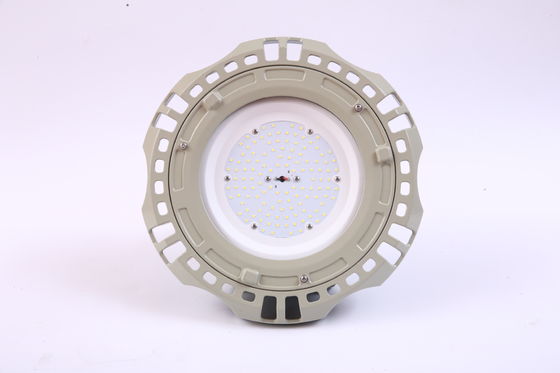

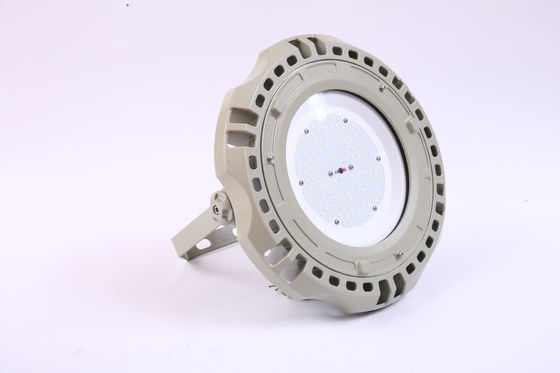

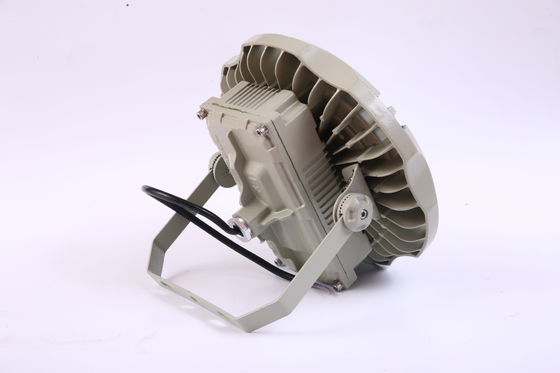

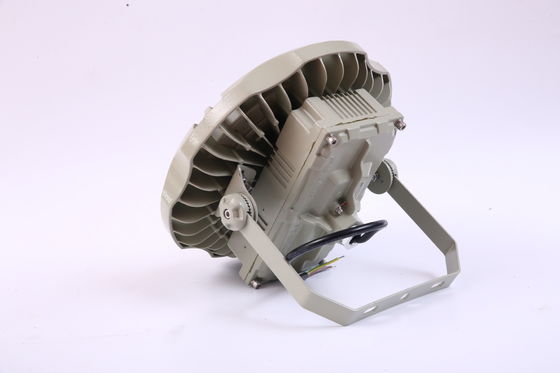

Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof

Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof

Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof
Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof

Duży Obraz :  Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof

Szczegóły Produktu:
Miejsce pochodzenia: Jiangsu, Chiny
Nazwa handlowa: Crown Extra
Orzecznictwo: ATEX,CE,ROHS,CNEX,ISO9001
Numer modelu: Gyd620
Zapłata:
Minimalne zamówienie: 1PC
Cena: USD80-140 per pc
Szczegóły pakowania: Światła LED będą zapakowane w karton, palecie
Czas dostawy: 15 dni roboczych
Zasady płatności: T/t
Możliwość Supply: 50000PCS/Miesiąc

Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof

Opis
Nazwa produktu: Światła LED z dowodem na eksplozję High Bay Tworzywo: Aluminium odlewujące
Temperatura kolorów (CCT): 3000/4000/5000/5700K Wydajność lampy: 135 lm/w
Certyfikat: CNEX, ATEX, CE, RoHS Obszar aplikacji: Strefa 1 i 2, Strefa 21 i 22
Woltaż: 100-277 V Model: Gyd620
Marka: Crown Extra

Direct factory WF2 outdoor anti-corrosion led high bay light IP66 waterproof and dustproof
Features:
1.Zone 1&2, Zone 21&22
2.Instant on crisp white light output
3.High efficiency drivers and LEDs provide, low cost operation in harsh andheavyindustrial applications
4. Isolated LED compartment reducestemperature within driver housing
5.Multi choice of beamangle for 60° 90°120
Specification:

Rated voltage100-277VAC, 50-60Hz
Power factor>0.95
THD<20%
Power consumption [W]50-100W, 120-150W
Colour rendering [CRI]70 (±2)
Colour temperature [K]6000-6500
Luminaire efficiency[Lm/W]125-130
Beam angle120° (45°, 90° is optional)
Degree of protectionIP66
Cable entryG 3/4”
Weight [kg]10.85
Terminal≤2.5 mm²
Mounting StylesCeiling; Wall Bracket; Pendant


Application:


Oil and Gas industry
1. All petroleum production and refining
2. Petroleum storage and retail

Chemical industry
1. All types of paint facilities
2. Chemical production and storage

Metal treatment
1. Steel and aluminum factories
2. Pumping stations in any environment
3. Metal smelting, foundry and fabrication

Food and alcohol industry
1. Flour and fine particle production and storage
2. Food and distilling production
3. Alcohol industry

Other high humidity, high dust, high temperature, vapor locations


Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
