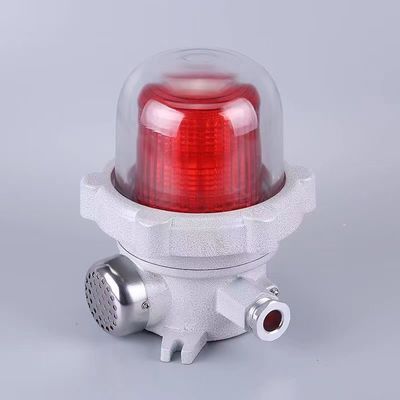

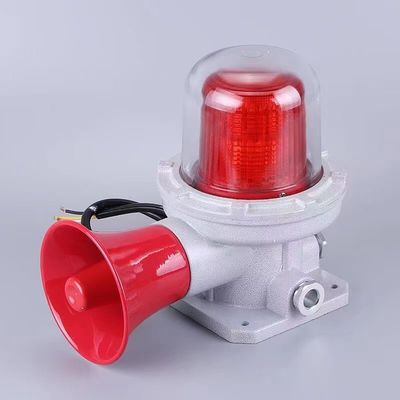

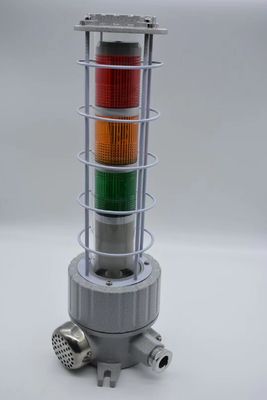

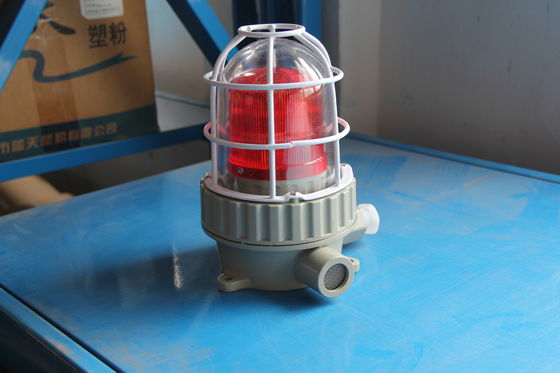

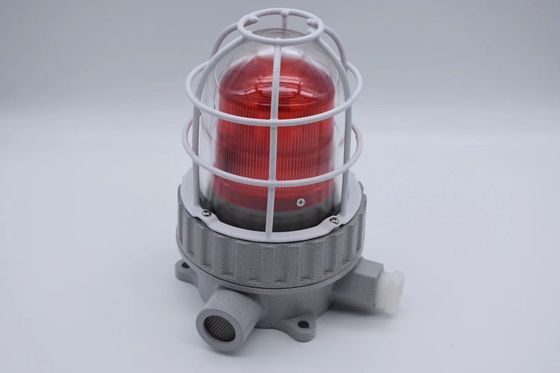

5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db

5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db
5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db

Duży Obraz :  5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db

Szczegóły Produktu:
Miejsce pochodzenia: Jiangsu, Chiny
Nazwa handlowa: Crown Extra
Orzecznictwo: ATEX,CE,ROHS,CNEX,ISO9001
Numer modelu: BBJ
Zapłata:
Minimalne zamówienie: 1PC
Cena: USD90-270 per pc
Szczegóły pakowania: Carton 、 drewniane pudełko 、 paleta
Czas dostawy: 15 dni roboczych
Zasady płatności: T/t
Możliwość Supply: 50000PCS/Miesiąc

5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db

Opis
Marka: Crown Extra Typ: Alarmy dźwiękowe i wizualne w wykonaniu przeciwwybuchowym
Moc: 5-40 W. Ex Mark: Ex eb db IIC
Woltaż: 220 V AC 50 Hz, 24 V DC Decybel: 120-180dB
Częstotliwość migająca: 150 razy/min Montowanie: Sufit

High Quality New 5-40w Explosion Proof Audible and Visual Light 150 times per min 120-180db
BBJ Series
5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 0


Features
1. Aluminum alloy fitted with cooling fins for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Saves in energy, maintenance andinstallation costs
4. Big horn for smooth, sonorous sound, spread further.



Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Die-casting aluminum/Stainless steel
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001





5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 1

Technical Data
Ex Marking
Ex db IIB T4 Gb
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP Degree
IP66
Corrosion Resistant
WF1/WF2
Input Voltage
AC220-230V/DC24V/ DC36V
Decibel 120-180db
Power
5-40wW
Sound Strength
90; 120; 180; 120
Flash Frequency
150Times/min
Color
Red, Yellow, Blue, Green
Emergency start time
<0.3s
Conduit Entries
G 3/4"
Mounting
Ceiling
Net Weight
1.8kg; 2.7kg; 3.7kg; 2.5kg







Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.

5-40w Explosion Proof Audible And Visual Light 150 Times Per Min 120-180db 2
